| Image Sensor |
1/3.2″ CMOS |
| Maximum Resolution |
2304 × 1296 (3MP) |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Illumination Distance |
Up to 10 m (32.81 ft) (IR) |
| Illuminator |
1 × IR LED, Auto On/Off |
| Pan & Tilt |
Pan: 0° to 355°, Tilt: –5° to 80° |
| Lens Max. Aperture |
F2.0 |
| Field of View (FOV) |
H: 73°, V: 41°, D: 88° |
| Human Detection |
Yes |
| Video Compression |
H.265 |
| Video Frame Rate |
Main: 2304 × 1296 @1–25/30 fps, Sub: 640 × 360 @1–25/30 fps |
| Video Bit Rate |
80 kbps–4096 kbps |
| Day/Night |
Auto (ICR) / Color / B/W |
| WDR |
DWDR |
| Motion Detection |
Yes |
| Image Rotation |
0° / 180° |
| Audio |
Built-in Mic & Speaker, G.711a |

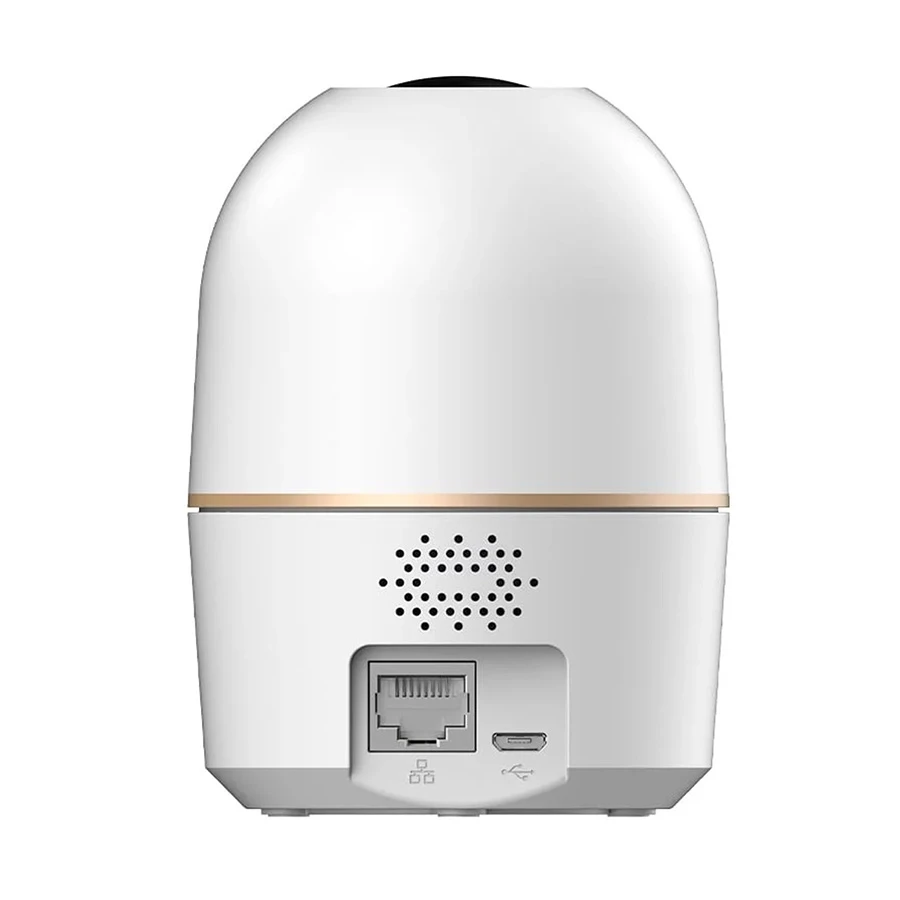

| Network |
RJ-45 (10/100 Base-T), Wi-Fi IEEE 802.11b/g/n/ax 2.4 GHz |
| Storage |
Micro SD card (up to 256 GB) |
| Management Software |
DMSS |
| Mobile Client |
iOS, Android |
| Certification |
CE |
| Power Supply |
5 VDC |
| Power Consumption |
Basic: 1.6 W, Max: 3.6 W (live + IR + PT rotation) |
| Operating Temperature |
–10 °C to +45 °C |
| Operating Humidity |
≤95% RH, non-condensing |
| Casing Material |
Plastic |
| Dimensions |
φ77.8 mm × 108.1 mm (φ3.06″ × 4.26″) |
| Net Weight |
195 g (0.30 lb) |
